Configuration Toolkit | Blueprint Usage

This page shows the Blueprint workflow for Config Toolkit. Start with the setup section before using the read and write nodes.

For first-time setup and installation, see the Plugin Installation guide.

File Name Behavior

Most nodes have a File Name pin.

File Name pin	Result
Empty	Uses `Default Config File Name` from project settings.
`Game`	Uses Unreal's resolved generated `Game.ini`.
`MyConfig`	Uses Unreal's resolved generated `MyConfig.ini`.
`Profiles/UserA`	Resolves under Unreal's generated config directory and appends `.ini` if no extension is provided.
Absolute path ending in `.ini`	Uses that exact disk file.

If the value contains a directory but no extension, Config Toolkit appends .ini. Relative paths are resolved under Unreal's generated config directory for the current platform.

Pro Tip: Persistent CVars

If you save values to the [ConsoleVariables] section of Engine.ini, Unreal Engine will automatically apply those CVars every time the game starts. This is perfect for persistent graphics or performance toggles.

Generated config files usually appear under:

Editor Config Path

Saved/Config/WindowsEditor/

Packaged Windows builds usually use:

Packaged Config Path

Saved/Config/Windows/

Write One Value

Use Write Config Value to save one Blueprint value.

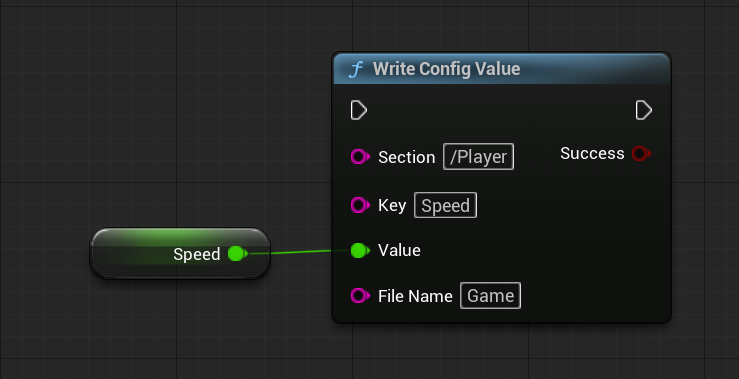

Write config value

Example:

Example Node Data

Section: Player
Key: Speed
Value: 600.0
File Name: Game

Expected .ini output:

Game.ini

[Player]
Speed=600.0

The value pin is a wildcard pin. Connect the actual type you want to save, such as Float, Bool, Name, String, Vector, Rotator, Soft Object Reference, or Soft Class Reference.

Read One Value

Use Read Config Value to read one value back.

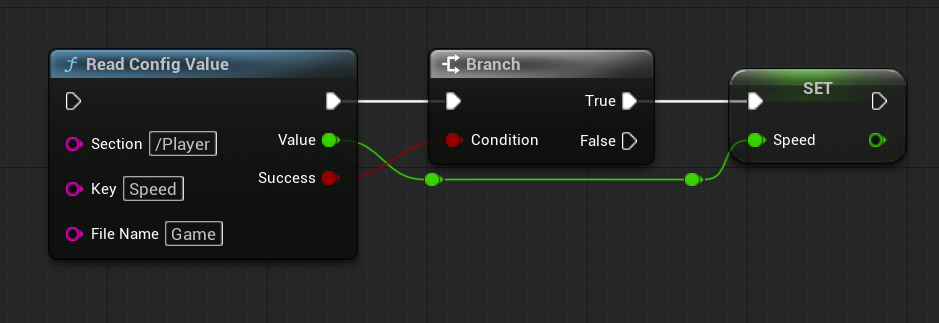

Read config value

Recommended flow:

Create The Node

Create Read Config Value and set the same file, section, and key used by the write node.

Choose The Output Type

Connect or promote the Value output as the type you expect. The output pin type controls how the saved text is imported.

Branch On Success

Branch on Success and use the value only when the bool is true.

If the saved text cannot be imported into the output pin type, the node returns false and logs the reason under LogConfigToolkit.

Write Arrays

Use Write Config Array to save a Blueprint array using Unreal's native config array format.

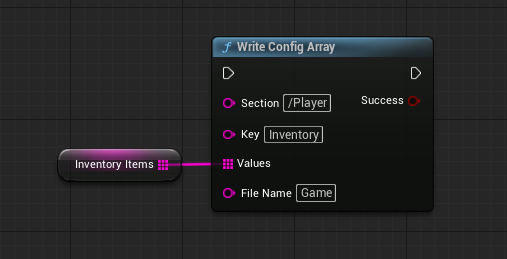

Write config array

Example output:

Game.ini

[Inventory]
Items=Sword
Items=Shield
Items=Potion

The plugin stores repeated config keys, not JSON. Unreal default config merge files often use +Items=Value, but generated saved config files commonly appear as repeated Items=Value lines.

Read Arrays

Use Read Config Array to read native config array entries back into an array output.

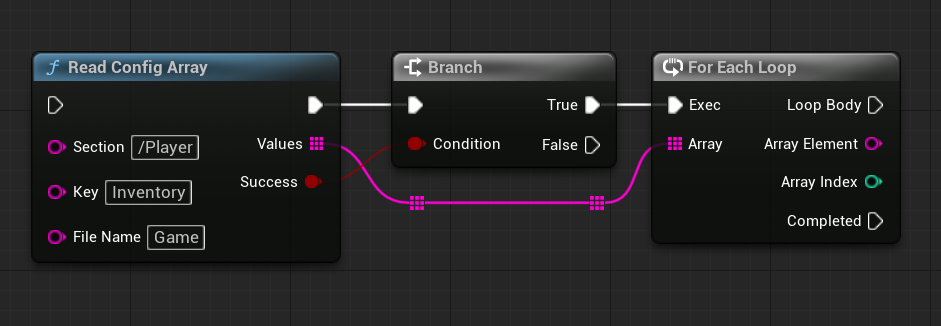

Read config array

Connect the Values output to a Set node, For Each Loop, or another array node.

Empty Arrays

Unreal config arrays do not have a native explicit empty-array marker in this plugin's format. If you write an empty array, a later read can return false because there are no +Key=Value entries to import.

Add Unique To Array

Use Add Unique To Config Array to add one value only when the serialized value is not already present.

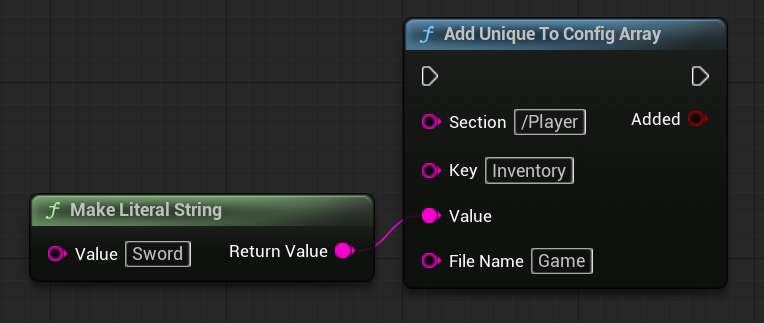

Add unique to config array

Returns:

Result	Meaning
`true`	The value was added.
`false`	The value already existed or the operation failed. Check `LogConfigToolkit` for details.

Remove From Array

Use Remove From Config Array to remove matching values from a config array.

Remove from config array

Returns:

Result	Meaning
`true`	At least one matching value was removed.
`false`	No matching value was found or the operation failed.

Soft Object References

Soft references are the safe workflow for asset config values. Config Toolkit stores the asset path string, but it returns a Soft Object Reference pin instead of loading the asset.

Use this when Automatically Handle Soft Reference Paths is enabled:

Write The Soft Reference

Connect a Soft Object Reference variable to Write Config Value. Config Toolkit writes the soft path string.

Read The Soft Reference

Read it back into a Soft Object Reference output pin. The read succeeds without loading the asset.

Load Only When Needed

Use Unreal's native Async Load Asset node when you actually need the loaded object.

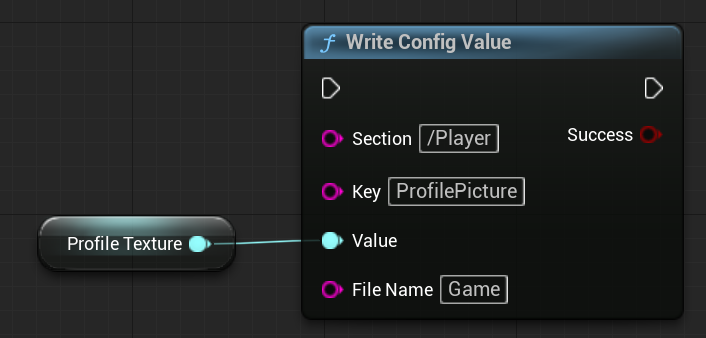

Write soft object reference

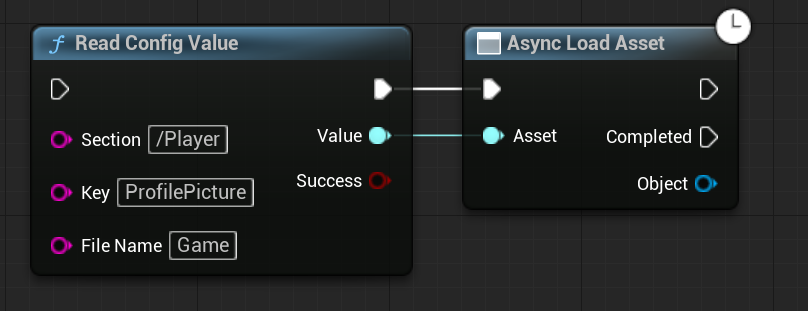

Read soft object reference and async load

Important behavior:

Reading into a Soft Object Reference pin succeeds without loading the asset.
Writing a hard object reference can save its existing path because the object is already loaded.
Reading into a hard object reference pin fails by design because that would require synchronous loading.
String pins are preserved as raw strings. The plugin does not inspect strings and guess whether they are asset paths.

Soft Class References

Soft class config values work the same way as soft object values.

Use this when Automatically Handle Soft Reference Paths is enabled:

Write The Class Path

Connect a Soft Class Reference variable to Write Config Value. Config Toolkit writes the class path string.

Read Into A Soft Class

Read it back into a Soft Class Reference output pin.

Load Asynchronously

Use Unreal's async loading workflow before using the loaded class.

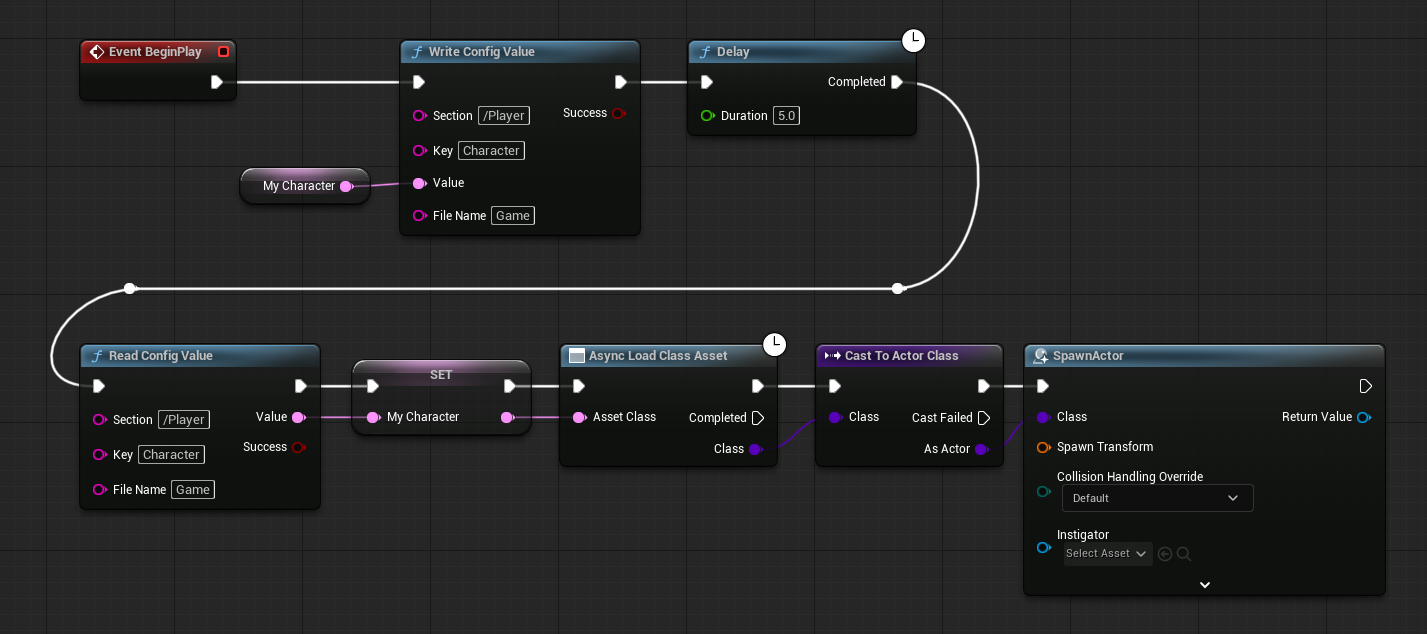

Write and read soft class reference

Hard class reads fail by design. Read into a soft class reference, then load asynchronously.

Manual Asset And Class Conversion

If you disable Automatically Handle Soft Reference Paths, or if you prefer explicit conversion nodes, use the manual pure helpers.

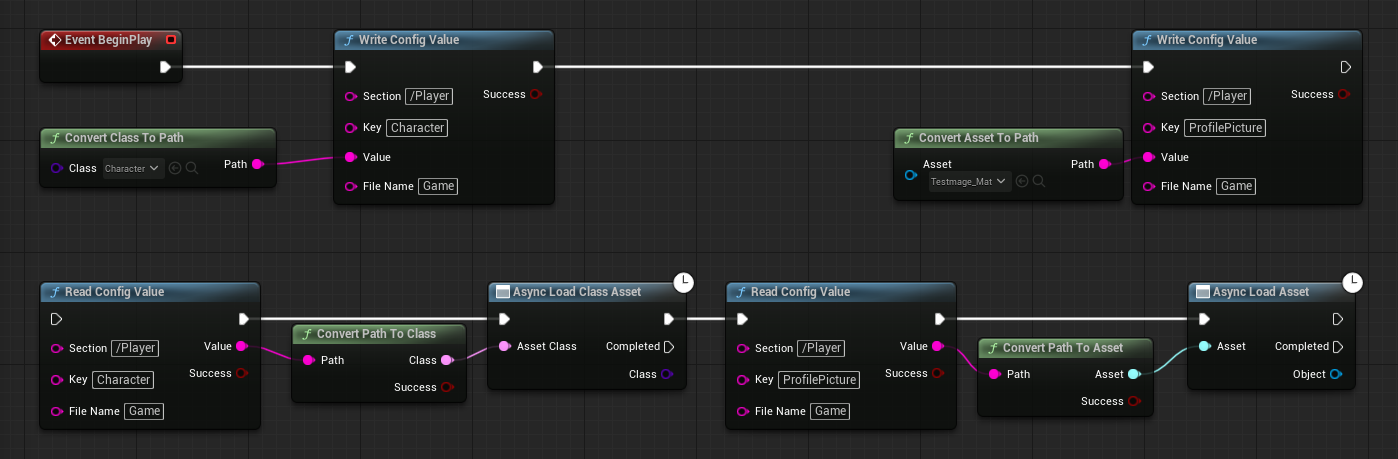

Manual path conversion

Available helpers:

Node	Use
`Convert Asset To Path`	Converts an already available asset reference into a soft object path string.
`Convert Class To Path`	Converts an already available class reference into a soft class path string.
`Convert Path To Asset`	Converts a path string into a Soft Object Reference and returns `Success`. It does not load the asset.
`Convert Path To Class`	Converts a path string into a Soft Class Reference and returns `Success`. It does not load the class.

Use the Success bool before using the converted soft reference.

Encrypted Strings

Use Write Encrypted String and Read Encrypted String for encrypted string values.

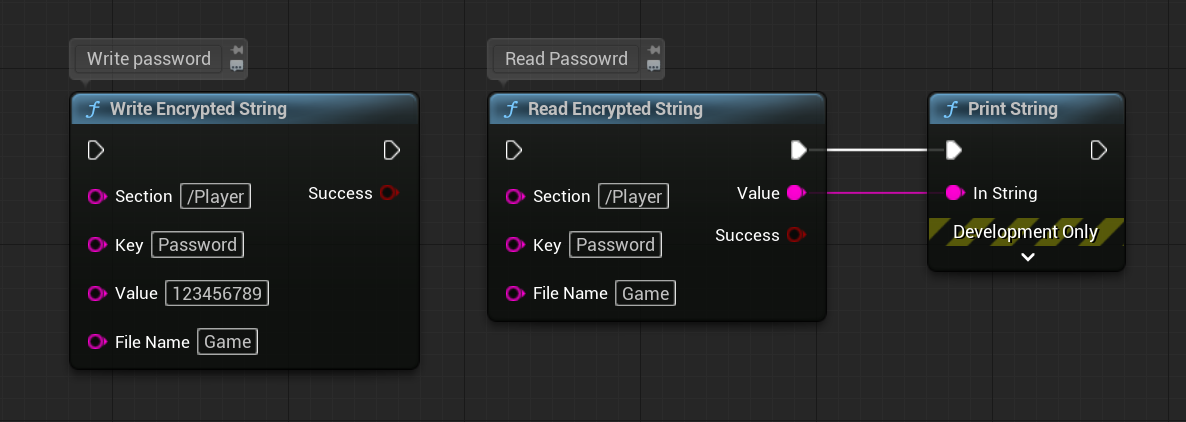

Encrypted string nodes

Encryption Setup

Set AES Encryption Key in project settings before using encrypted string nodes. The key must be exactly 32 UTF-8 bytes. Only the value is encrypted; the file name, section name, and key name remain readable in the .ini file. Treat encrypted strings as lightweight local config privacy, not as a secure vault for high-value secrets.

Check Files And Keys

Use Does Config File Exist to check whether the resolved .ini exists on disk.

Use Does Config Key Exist to check for a key.

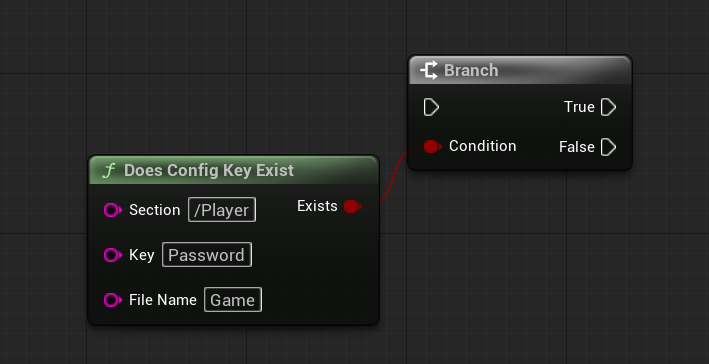

Does config key exist

Does Config Key Exist behavior:

Section pin	Behavior
Non-empty	Checks only that section.
Empty	Searches every section in the file for the key.

Remove Keys, Sections, And Files

Use these nodes for cleanup:

Node	Use
`Clear Config Key`	Removes one key from one section.
`Clear Config Section`	Removes a whole section and its keys.
`Remove Config Section`	Also removes a whole section and its keys. Use this clearer name for new graphs.
`Delete Config File`	Deletes a generated project `.ini` file and clears cached config data so stale memory does not recreate it later.

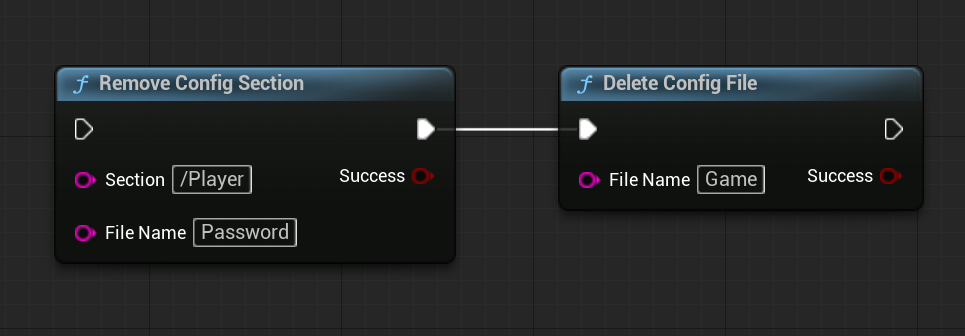

Remove section and delete file

Section removal and key removal respect Automatically Flush Config. If automatic flush is disabled, call Flush Config when you want the deletion written to disk.

Delete Config File only deletes files under the project's generated config directory. It returns false if the file resolves outside that directory, cannot be deleted, or does not exist.

Manual Flush Workflow

If Automatically Flush Config is disabled, write and cleanup nodes update the config cache first. Call Flush Config when you want the current cached config state written to disk.

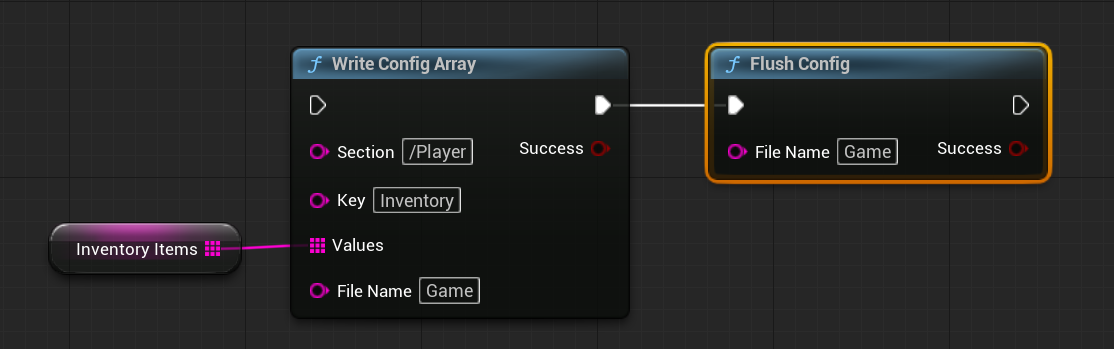

Manual flush flow

Recommended batched-write flow:

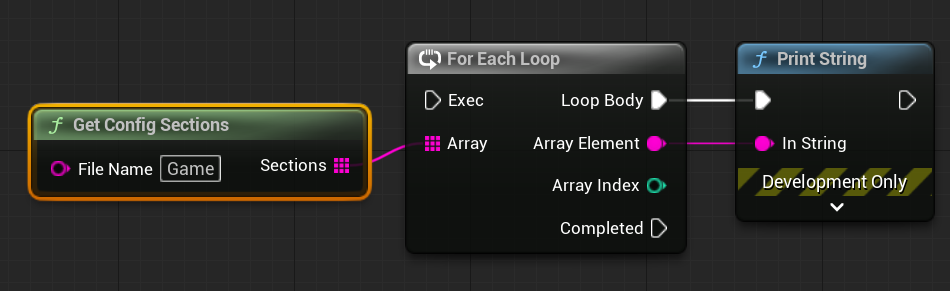

This is useful for debug menus, user profile lists, and validation tools.
